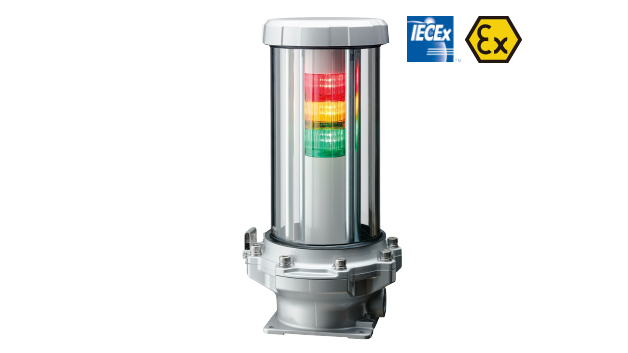

EDLR Series -Explosion Proof LED Signal Tower

• – Type: Explosion‑proof LED signal tower
• – Certification: ATEX, IECEx (Zone 1 & Zone 2 hazardous areas)
• – Colors: Red, Amber, Green (LED illumination)
• – Light Modes: Continuous ON or Flashing (~60 flashes/min)
• – Housing: Aluminum die‑cast body with hard transparent globe
• – Protection Rating: IP66 (dust‑tight, water‑jet resistant)
• – Mounting: Upright, indoor/outdoor installation
• – Weight: ~9 kg

Key Specifications

• – Model Variants:
•       – EDLR‑302F: 24 V DC input
•       – EDLR‑3M2F: 100–240 V AC input (50/60 Hz)
• – Power Consumption:
•       – Max 3.9 W (24 V DC)
•       – Max 4.0 W (100–240 V AC)
• – Operating Temperature: –20 °C to +50 °C
• – Storage Temperature: –30 °C to +60 °C
• – Ambient Humidity: <90% (non‑condensing)
• – Explosion‑proof Markings:
•       – IECEx: Ex db IIB+H2 T6 Gb
•       – ATEX: II 2 G Ex db IIB+H2 T6 Gb

 Applications

• – Chemical plants (flammable gases present)
• – Oil & gas refineries
• – Hazardous material storage areas
• – Gas production facilities
• – Industrial zones requiring ATEX/IECEx compliance
