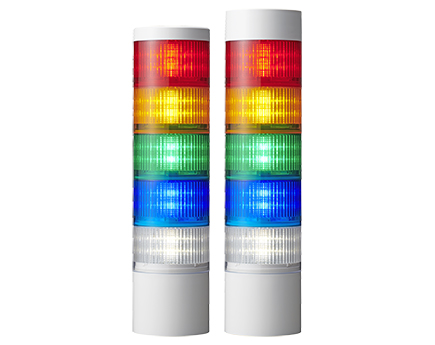

LR10 Series – 100mm LED Signal Tower Lights

Key Features & Specifications

• – Tower Diameter: Ø100 mm LED Signal Tower Lights
• – Mounting Location: Indoor / Outdoor
• – Mounting Direction: Upright position
• – Protection Rating:
  1. IP66 / IP69K (IEC 60529, ISO 20653)
  2. NEMA Type 4X, 13 compliance
• – Light Patterns:
  1. Continuous ON
  2. Blinking
  3. Flashing (Strobe)
  4. Simulated rotation (motorless)
• – Audible Alarm:
  1. Up to 92 dB buzzer, omni‑directional coverage
• – Operating Voltage:
  1. DC 24V models
  2. AC 100–240V models
• – Operating Temperature: –20 °C to +50 °C (standard), storage down to –30 °C
• – Humidity Range: Up to 90% RH (non‑condensing)
• – Certifications: UL, CE, UKCA, RoHS compliant

 Applications

The LR10 Series is ideal for:

• – Heavy machinery and outdoor equipment requiring high visibility
• – Large manufacturing plants with noisy environments
• – Food & beverage or pharmaceutical facilities needing IP69K wash‑down compliance
• – Process monitoring and alarm signaling in rugged industrial settings
