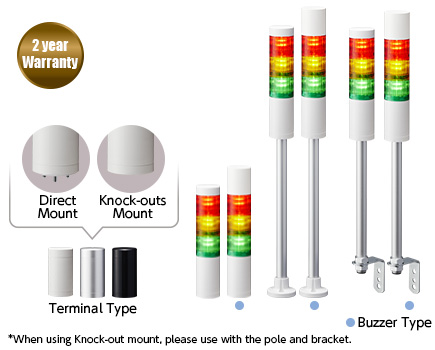

LR5 Series – 50mm LED Signal Tower Lights

Key Features & Specifications

• – Tower Diameter: 50mm LED Signal Tower Lights
• – Mounting Location: Indoor use
• – Mounting Direction: Upright position
• – Storage Humidity Range: Up to 90% RH (non-condensing)
• – Protection Rating:
  1. IP65 (IEC 60529)
  2. NEMA Type 4X, 13
• – Insulation Resistance:
  1. More than 1MΩ at DC 500V between power input lead and chassis
• – Withstand Voltage:
  1. AC 500V for 1 minute between terminals and chassis without insulation breakdown
  2. (M2 type: AC 1500V for 1 minute)
• – Flash Rate: 60 ±2 flashes per minute
• – Sound Level:
  1. DC 24V: Approx. 85 dB (typ.)
  2. DC 12V: Approx. 80 dB (typ.)
• – Sound Reduction: Approx. -10 dB reduction option
• – Audible Coverage:
  1. Buzzer Sound No.4 (Sweep) clearly audible from all directions at 1 m distance

Applications

The LR5 Series Signal Tower Lights are ideal for:

• – Industrial automation systems
• – Manufacturing and assembly lines
• – Packaging and material handling equipment
• – Machine status indication and alarm signaling

Combining visibility, durability, and dependable performance, the LR5 Series from Shikhar Automation is a practical and efficient signaling solution that supports safer operations and improved productivity across industrial environments.
