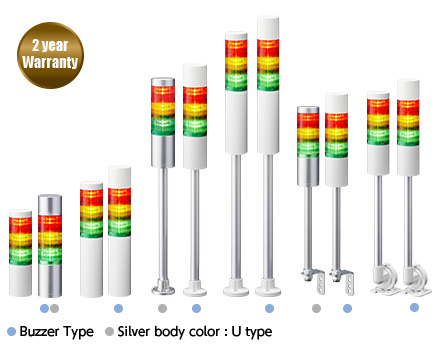

LR6 Series – 60mm LED Signal Tower Lights

Key Features & Specifications

• – Tower Diameter: 60mm LED Signal Tower Lights
• – Operating Ambient Temperature: -20°C to +50°C
• – Mounting Location: Indoor use
• – Mounting Direction: Upright position
• – Protection Rating:
  1. IP65 (IEC 60529)
  2. NEMA Type 4X, 13
• – Insulation Resistance:
  1. More than 1MΩ at DC 500V between power input lead and chassis
• – Withstand Voltage:
  1. AC 500V for 1 minute between terminals and chassis without insulation breakdown
  2. (M2 type: AC 1500V for 1 minute)
• – Flash Rate: 60 ±2 flashes per minute
• – Sound Level: Approx. 88 dB (LR6 typical)
• – Sound Reduction: Approx. -10 dB reduction option
• Buzzer Sound Patterns: 4 selectable patterns
• – Audible Coverage: Buzzer Sound No.4 (Sweep) clearly audible from all directions at 1 m distance
• – Transistor Output:

1. NPN / PNP supported
2. (AC 100–240V models: NPN only)

Applications

The LR6 Series Signal Tower Lights are widely used in:

• – Industrial automation systems
• – Manufacturing and assembly lines
• – Control panels and machinery status indication
• – Packaging, material handling, and process industries

With its reliable performance, strong visual clarity, and effective audible alerts, the LR6 Series from Shikhar Automation is a dependable solution for improving machine communication, workplace safety, and production efficiency.
