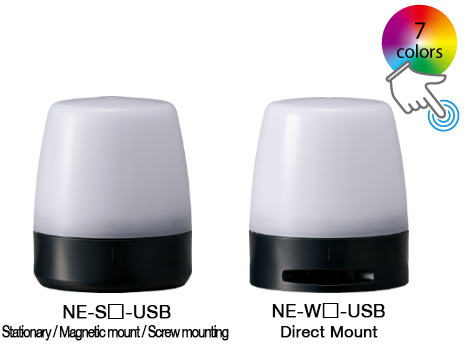

Product Overview
The NE-USB Series is a USB-controlled multicolor signal beacon that connects directly to a PC or HMI without external power supplies. It is ideal for laboratories, small automation setups, and IT/server monitoring, where compact signaling and easy integration are required.
- – Plug-and-play via USB 2.0 (no external drivers needed, HID class supported)
- – Compact design with clear or colored globe options
- – Programmable colors and buzzer patterns for flexible status indication
- – Indoor use with IP20 or IP65 protection depending on model
Key Features & Specifications
- – Rated Voltage: 5V DC (USB bus power)
- – Operating Voltage Range: ±5% (USB 2.0 compliant)
- – Current Consumption:
- Max 205 mA (NE-SN-USB)
- Max 215 mA (NE-ST-USB)
- Max 180 mA (NE-WT-USB)
- – LED Colors: White, Red, Amber, Green, Blue, plus multi-color options
- – Buzzer:
- Pattern No.1 Continuous
- Max volume ~80 dB
- – Adjustable volume levels
- – Operating Temperature: –20 °C to +50 °C (standard), –25 °C to +60 °C (some models)
- – Humidity Range: Less than 90% RH (non-condensing)
- – Mounting Direction: All directions (upright only if waterproofness required)
- – Protection Rating:
- – IP20 (standard indoor models)
- – IP65 (waterproof upright models)
Applications
The NE-USB Series is best suited for:
- – PC/server monitoring (alerts for system errors or network status)
- – Laboratory environments needing compact visual/audible indicators
- – Small automation setups where USB integration is convenient
- – Operator guidance in assembly or testing stations
